Text Editor

You can use any text editor for editing Art files, but it's highly recommended to edit them in Code RealTime. Thereby you will have access to features such as syntax coloring, content assist and semantic validation.

Syntax Coloring

Code RealTime provides color themes that have been specifically designed for being used for editing Art files. Activate one of these color themes from File - Preferences - Color Theme.

  • Art Dark This is a dark theme that colorizes Art keywords, properties and comments. All embedded C++ code will be shown in gray color. This theme can be useful if you mostly edit C++ code snippets in generated files and propagate those changes back to the Art files automatically (see Making Changes in Generated C++). Showing C++ code in gray color makes it easier to see what parts you have to edit in the Art file, and what parts (i.e. the C++ code) that you can edit in generated files.

  • Art Dark++ This is a dark theme that colorizes Art keywords, properties and comments. In addition it colorizes embedded C++ code using the same colors as are used for a C++ file. To help in separating Art from C++, all Art code uses a bold font, while C++ code uses a regular font. This theme can be useful if you prefer to edit both Art and C++ code in the Art file.

  • Art Light This is a light theme that uses the same colors as Art Dark.

  • Art Light++ This is a light theme that uses the same colors as Art Dark++.

Content Assist

This feature, which also is known as IntelliSense or Code Completion, helps you when editing an Art file by proposing commonly used Art constructs that are valid at the current cursor position. Invoke Content Assist by pressing Ctrl+Space. Depending on where the cursor is placed you will get different proposals to choose from. There are four kinds of proposals as shown in the picture below:

  • Code Templates are complete Art elements, for example a capsule, protocol or state. The inserted code template often has variables that you should replace as you find appropriate. For example, the code template for a capsule contains one variable for the capsule name and another for the name of the state which its state machine contains. Press Tab to move forward from one variable to the next and if needed Shift+Tab to move backwards to a previous variable. Note that the same variable may occur in multiple places, like the State variable for the capsule code template which occurs both in the state definition and as a state reference in the initial transition. All occurrances of a variable are updated simultaneously when you replace the variable with a string.

Note that code templates are also available in some C++ code snippets (e.g. rt::decl and rt::impl) and can help you insert pieces of C++ code that are commonly used in Art applications.

  • References are references to existing Art elements, for example a state, event or capsule. All Art elements of the correct kind which are visible from the cursor position will be available. References may have a qualifier if necessary, for example when referencing an entry point.

  • Name represents an identifier used as the name of an Art element. It appears as a proposal at positions where the Art language allows a named element. Choosing this proposal just inserts the string "name" which probably is not so useful. However, the presence of a name item in the proposals list tells you that you can use an arbitrary identifier as the name of an Art element at that position. For example, in the proposals list shown in the picture above name appears since a triggered transition may have an optional name before its declaration. The code template for the triggered transition will not insert a name, since many transitions don't have names, but you can manually add it afterwards:
MyTransition: State -> X on timer.timeout
  • Keywords are keywords from the Art language that are valid to use at the cursor position. This also includes lexical tokens such as : or . where applicable. For example, after you have typed the name for the triggered transition shown above you can use Content Assist to learn that it may be followed by either a -> or : token:

Use in Code Snippets

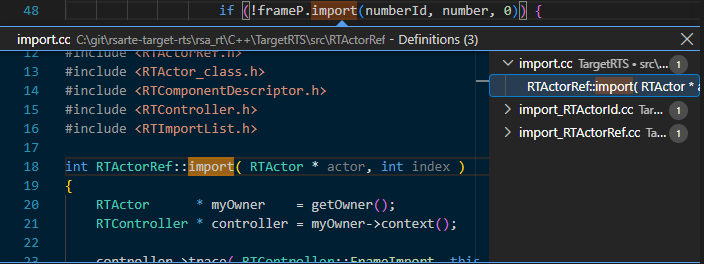

If you use Content Assist within a C++ code snippet, Code RealTime will delegate the request to the C++ language server extension that is installed. It works by computing valid completions from the cursor position based on the generated C++ file that contains the code from the code snippet.

Note that the "Microsoft C++" and "clangd" language servers work slightly differently in this regard. It can happen that you in some cases need to invoke Content Assist twice, before the correct results appear. This has to do with how the language servers keep cached information from C++ files, and will hopefully improve in future versions.

Hint

The "clangd" language server supports an argument --completion-parse=always which you can add in its settings. It's recommended to set this argument, since it will force the generated C++ file to be parsed each time Content Assist is invoked, without relying on cached information.

Renaming Elements

To rename an Art element place the cursor on the element's name and press F2 (or invoke the command Rename Symbol from the context menu). This performs a "rename refactoring" that updates all references to the renamed element too.

Note

Avoid renaming an element by simply editing its name. For Code RealTime to understand that you want to rename an element, rather than replacing it with another element, you need to use the approach described above.
